Optical Posts

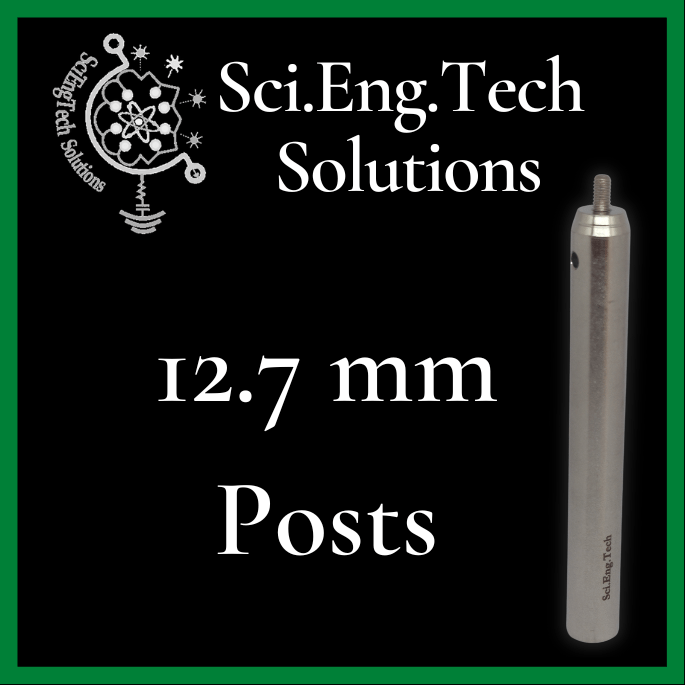

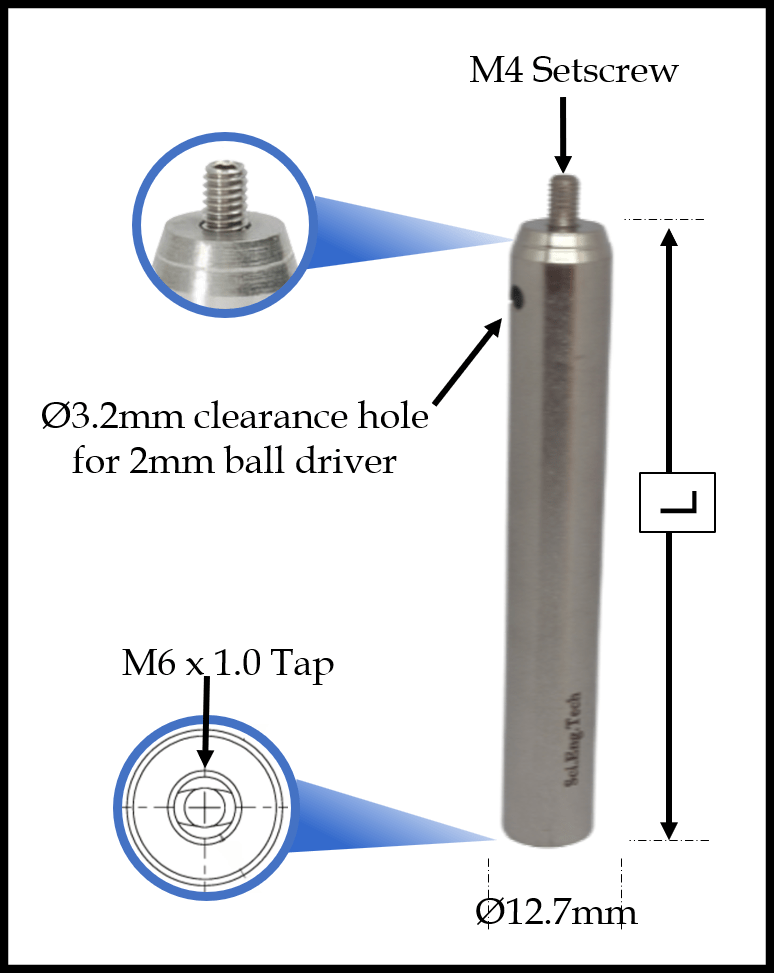

Sci.Eng.Tech Solutions offers high quality stainless steel posts which are available in diameter of 12.7mm. These posts are made of high quality stainless steel and have excellent finishing. The posts are available in different length from 20mm to 200mm. One end of the post have tapping for M4 screws and the other end (bottom end) has tapping for M6 screws. A 3.6mm diameter hole is provided on the surface of the post for additional tightening of the optical components. These posts are suitable with Sci.Eng.Tech Solutions and other standard post holders.
Features
High quality Stainless Steel Posts
Excellent finishing
Available in different length from 20mm to 200mm
M4 and M6 threading available on posts for mounting
M4 setscrew provided
Compatible with standard post holders
Vacuum-compatible
Easy to mount the post on standard optical breadboard
Made in India
Available lengths :
20 mm , 30 mm , 40 mm , 50 mm , 75 mm , 100 mm , 150 mm , 200 mm
